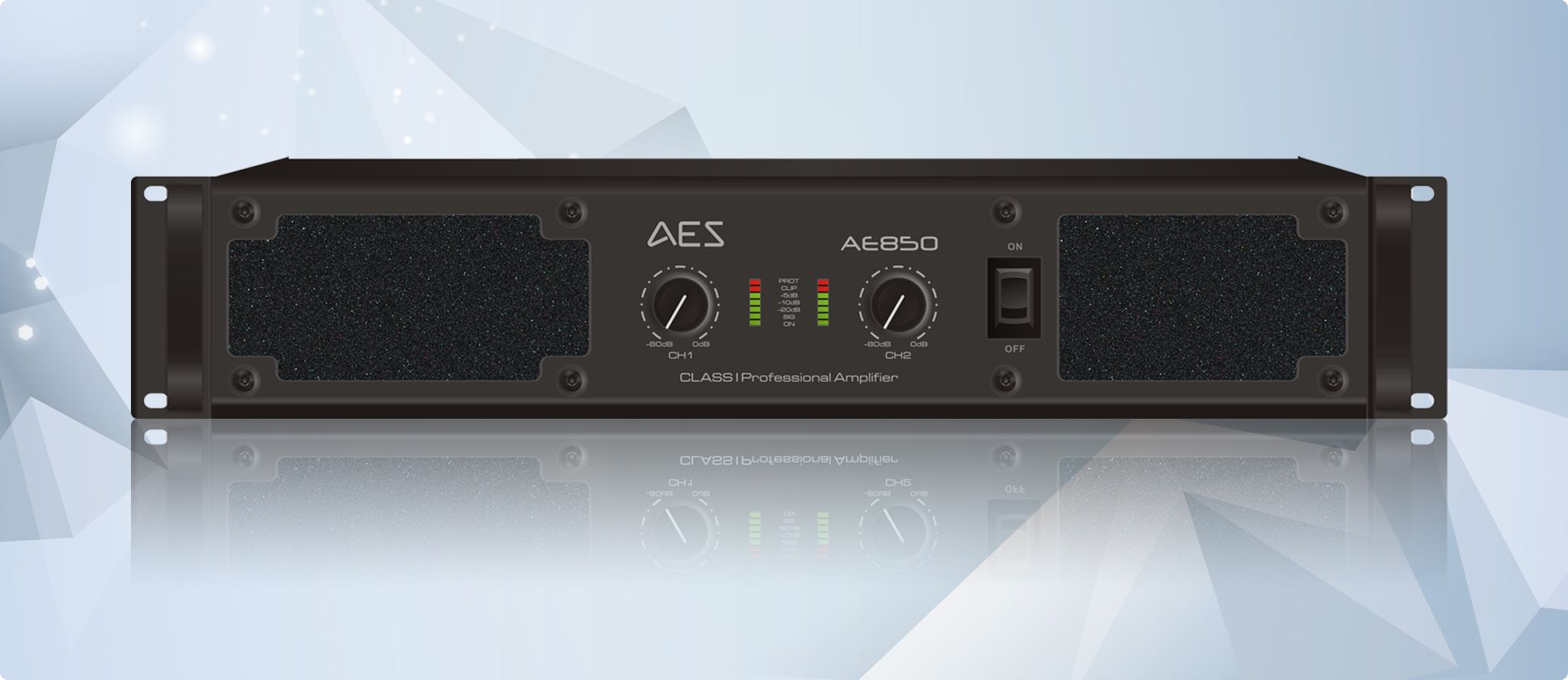

AE series DatasheetAE Series
SAE’s legendary products AE series amplifiers, not only update the front panel, but also added the SAE highly efficient Class I technology, lead to better sound quality in middle range power amplifier series.AE series represents the best performance in speaker adaptability for multichannel double power amplifier amplification system.
Features
- SAE Audio renowned Regulated SMPS power supply unit.
- High efficiency Class I™ power modules.
- Highly sensitive CMRR balanced inputs for improved noise rejection.
- Channel independent protection and clip warning indicators on the front panel.
- XLR input and signal link connectors.
- SpeakON NL4 and binding post output connectors.
- Input sensitivity selector on the back panel (32dB / 1v / 0.775v).
- Routing mode selector on the back panel (stereo / bridge-parallel).
- Mains circuit-breaker on the back panel.
Specifications
| Model | AE850 | AE1450 |
| Output power | (AC 220v/50Hz. +/-10%. All channels driven output power, THD=1%) | |
| 8Ω Stereo* | 850W×2 | 1500W×2 |
| 4Ω Stereo** | 1500W×2 | 2500W×2 |
| 2Ω Stereo** | 2000W×2 | 3300W×2 |
| 8Ω Stereo** | 3000W | 5000W |
| 4Ω Stereo** | 4000 | 6000W |
| Other specifications | ||
| Frequency Response | 20Hz-20kHz, +/-0.5dB | 20Hz-20kHz, +/-0.5dB |
| THD+N | ≤0.02% | ≤0.05% |
| S/N Rate | ≥ 95dB | ≥ 95dB |
| Damping Factor | ≥ 280 | ≥ 280 |
| Input Sensitivity | 0.775v/ 1v/ 32dB | 0.775v/ 1v/ 32dB |
| Input Impedance (bal/unbal) | 20kΩ/10kΩ | 20kΩ/10kΩ |
| Voltage Gain | 40.5dB | 43dB |
| Cooling | Air flow from front to rear | Air flow from front to rear |
| Dimension / Weight | ||
| Product Dimensions (mm) | 483 × 450.5 × 89 | 483 × 501.5 × 133 |
