AQ Series

The AQ series is the best solution for those sound reinforcement applications requiring a multichannel amplifier with a mid output power density and a ver y good sounding characteristic but on an affordable budget. Implementing Power Factor Correction (PFC) technology along with Universal Mains Regulated SMPS power supply and Class D power modules, the AQ series combines in the same amplifier all the functional requirements for most sound reinforcement applications.

Features

  • Class D power modules.
  • Universal mains Regulated SMPS.

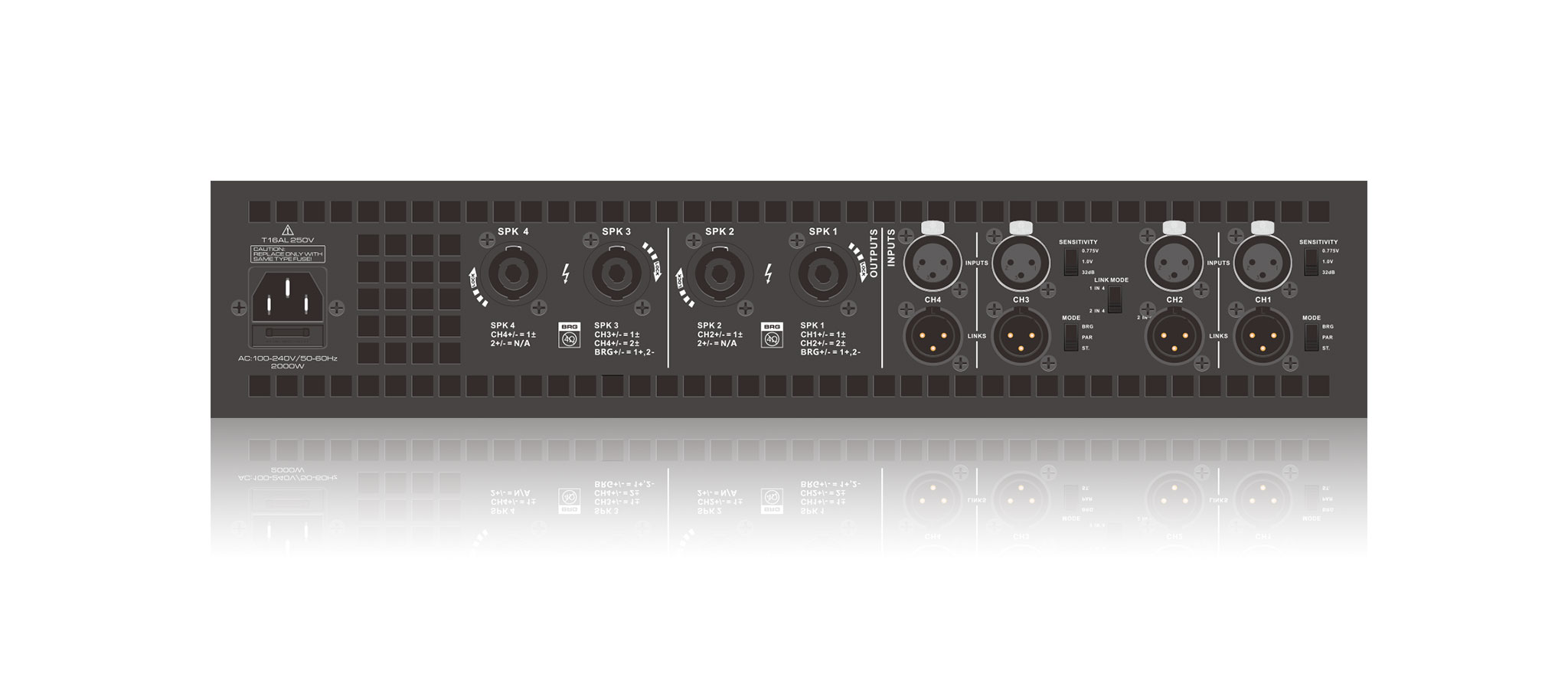

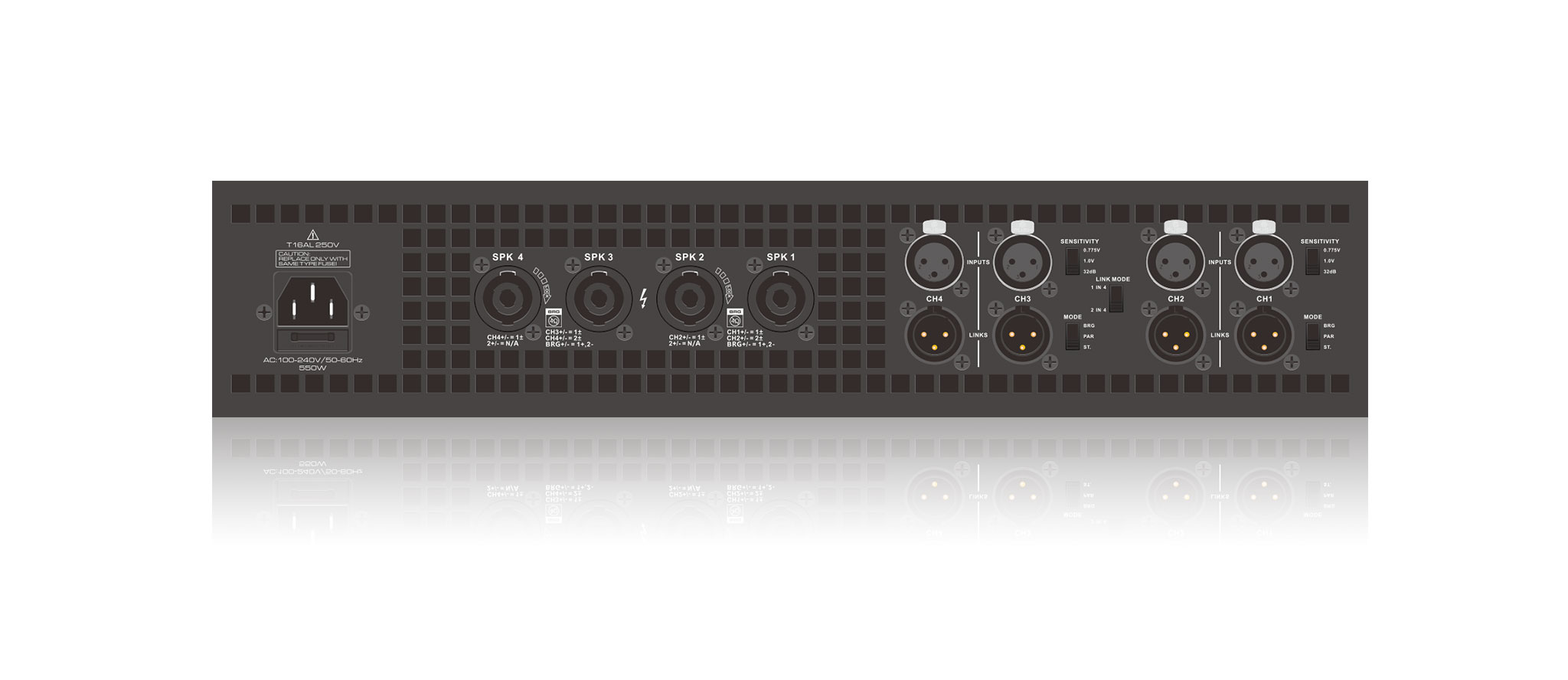

  • XLR signal input and link connectors.
  • SpeakON NL4 and binding-post output connectors.
  • Input sensitivity selector (0.775V / 1V / 32dB).
  • Routing mode selector (stereo / bridge / parallel).
  • Channel independent protection and clip warning indicators on the front panel.
  • Channel independent power and -5dB/-10dB/-20dB/ signal presence indicators on the front panel.
  • Low unit weight.

Specifications

Model AQ500 AQ800 AQ1000 AQ1300
Output power (AC 220V / 50Hz. ±10%, All channels driven output power, THD=1%)
8Ω stereo 500Wx4** 870Wx4** 1000Wx4* 1300Wx4*
4Ω stereo 920Wx4** 1500Wx4** 1500Wx4* 2000Wx4*
2Ω stereo 920Wx4** 1500Wx4** 1500Wx4* 2000Wx4*
8Ω bridge 1500Wx2** 2800Wx2** 3000Wx2* 3700Wx2*
4Ω bridge 1900Wx2** 2800Wx2** 3000Wx2* 3700Wx2*
Other specification
Frequency response 20Hz-20kHz(+0/-1.2dB) 20Hz-20kHz(+0/-1dB)
THD+N ≤0.2% ≤0.2% ≤0.1% ≤0.1%
S/N rate ≥ 100dB ≥ 98dB ≥ 98dB ≥ 98dB
Input sensitivity 0.775/1.0V/32dB
Input impedance(bal/unbal) 20kΩ/10kΩ
Voltage gain (8 ohm) 38.2dB 40.3dB 41.2dB 42dB
Output circuitry Class D
Dimension / Weight
Product Dimension(mm) 483x461x89 483x335x89
Packaging Dimension(mm) 595x565x170 565x485x170
G.W. 11kg 12.5kg 9.5kg 9.7kg

Remark:
1、*Power tested under the condition of 40ms burst, 1KHz sine wave and 1% THD.
2、**Power tested under the condition of 20ms burst, 1KHz sine wave and 1% THD.
3、SAE reserves the right to make any changes to the product specifications without prior notice. Final specifications to be found in the user manual.
