Hybrid Series
Hybrid series has used high quality toroidal transformer power supply amplifier and with SAE patent technology Class ITM (Hybrid800/Hybrid1000) and Class D (Hybrid400/Hybrid600) power modules. High efficiency Class I™ power modules has supplied Hybrid unprecedented sound quality. The Hybrid series represents the best performance in multi-channel amplification systems.
Features
- Class D power modules. (Hybrid400/Hybrid600)
- High efficiency Class ITM power modules.(Hybrid800/Hybrid1000)
- Toroidal transformer power supply.
- Highly sensitive CMRR balanced inputs for improved noise rejection.

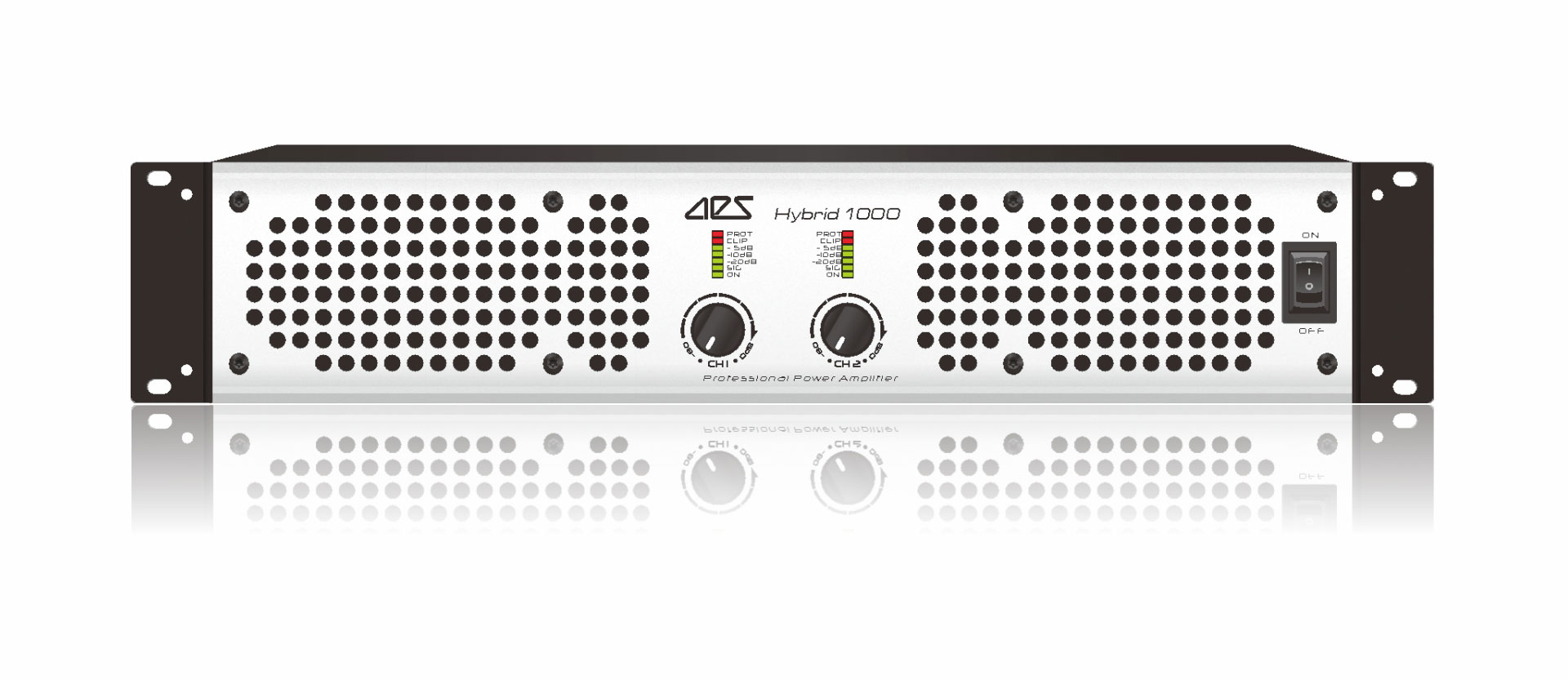

- Channel independent power on, protection signal and clip warning indicators on the front panel.
- SpeakON NL4 and binding post output connectors.
- Channel independent power and -5dB / -10dB / -20dB /signal presence indicators on the front panel.

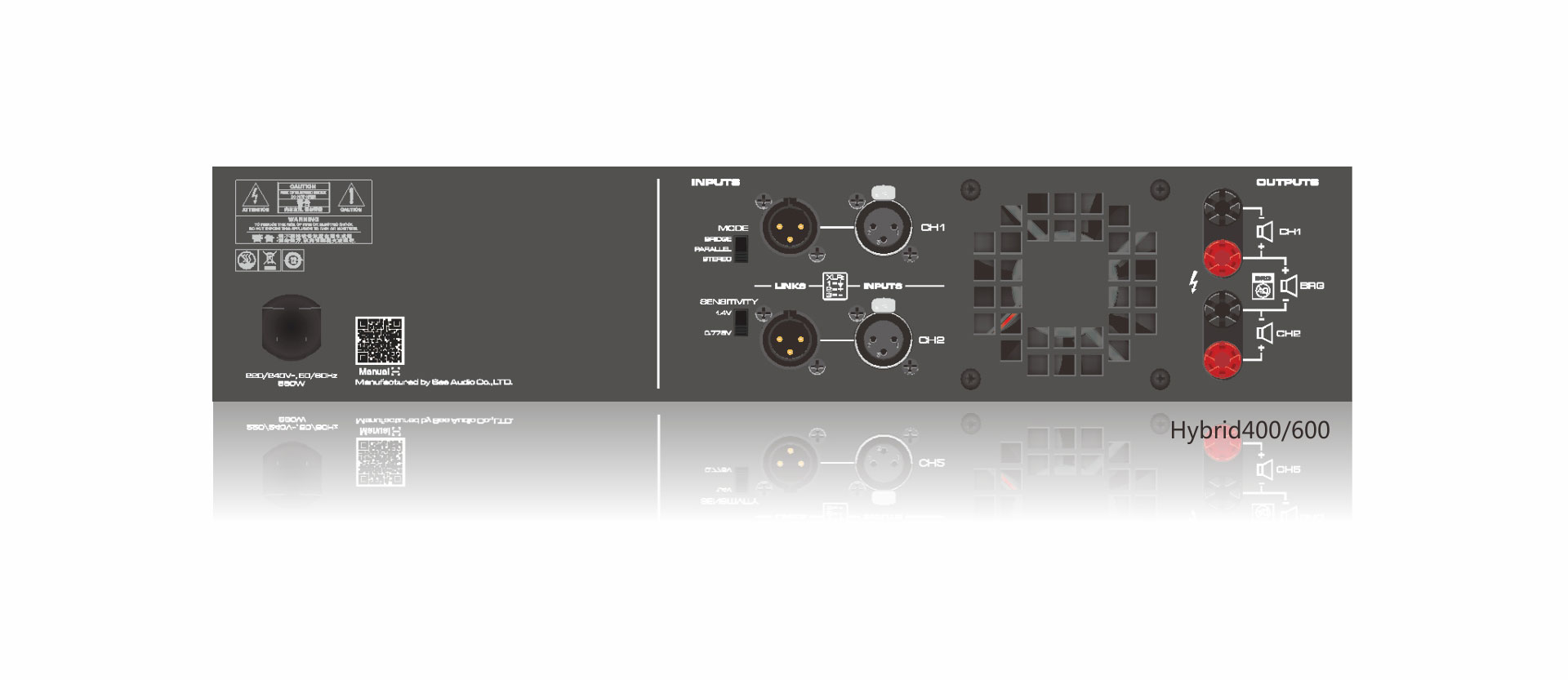

- Independent XLR input and link connectors on the back panel.
- SpeakON NL4 and binding post output connectors.
Specifications
| Model | Hybrid400 | Hybrid600 | Hybrid800 | Hybrid1000 |
| Output power | (AC 220V / 50Hz. ±10％, All channels driven output power, THD=1%) | |||
| 8Ω stereo | 400W x2 | 600W x2 | 800W x2 | 1000W x2 |
| 4Ω stereo | 600W x2 | 900W x2 | 1200W x2 | 1400W x2 |
| 8Ω bridge | 1200W | 1800W | – | – |
| Other specification | ||||
| Frequency response | 20Hz-20kHz( +0/-1.5dB) | 20Hz-20kHz( +0/-1dB) | ||
| THD+N | ≤0.1% | ≤0.15% | ||
| S/N rate | ≥ 85dB | |||
| Input sensitivity | 0.775/1.4V | 0.775V | ||
| Input impedance(bal/unbal) | 40kΩ/20kΩ | 20kΩ/10kΩ | ||
| Voltage gain (8 ohm） | 37dB | 38dB | 39dB | 40.2dB |
| Dimensions/Weight | ||||
| Product Dimension(mm) | 483 x 254 x 89 | 483 x 254 x 89 | 483 x 245 x 89 | 483 x 245 x 89 |
| Packaging Dimension(mm) | 560 x 435 x 170 | 560 x 435 x 170 | 560 x 435 x 170 | 560 x 435 x 170 |
| G.W. | 10.3kg | 11.4kg | 12.1kg | 13.3kg |
Remark：
1、*The Power is tested under the condition of 20ms burst, 1KHz sine wave and 1% THD.
2、SAE reserves the right to make any changes to the product specifications without prior notice. Final specifications to be found in the user manual.
